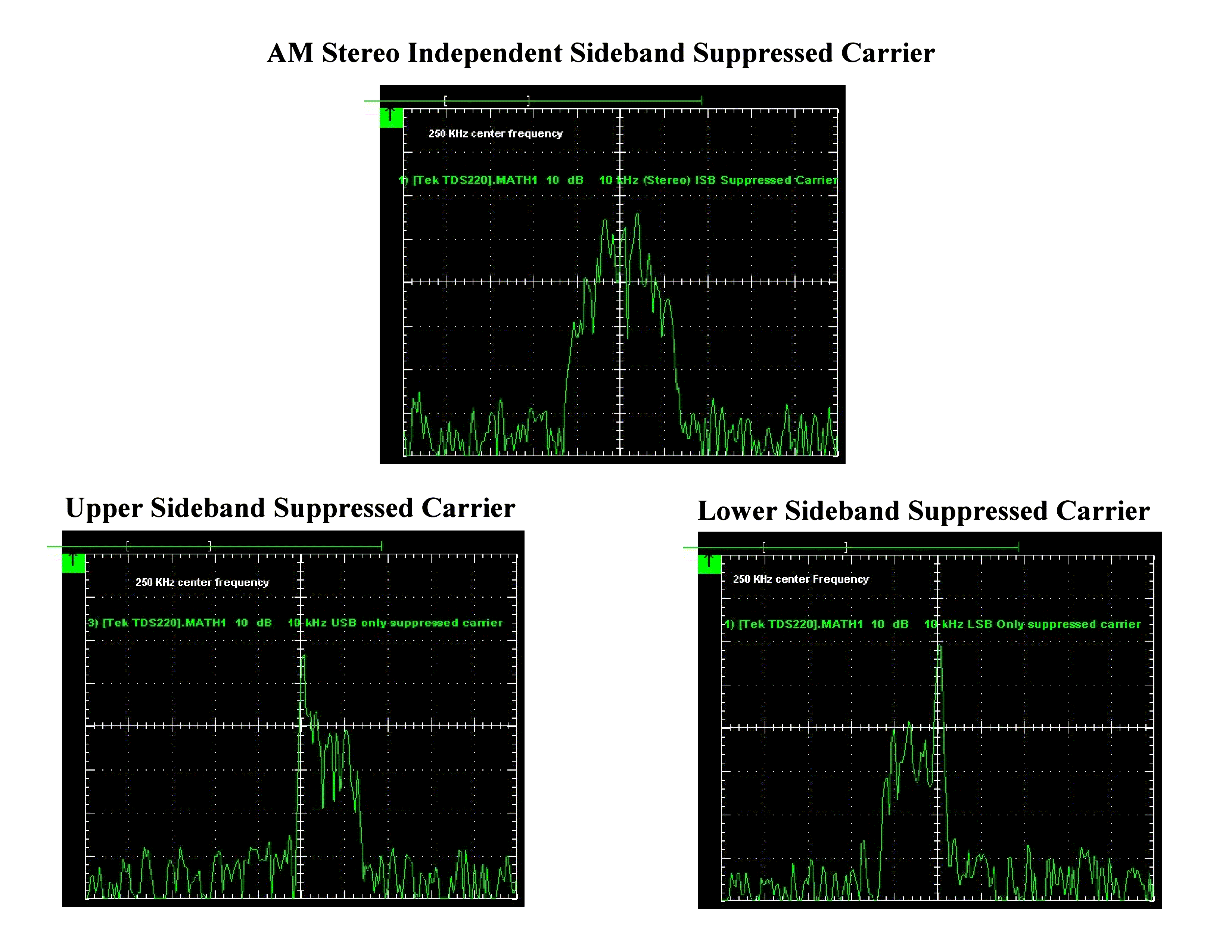

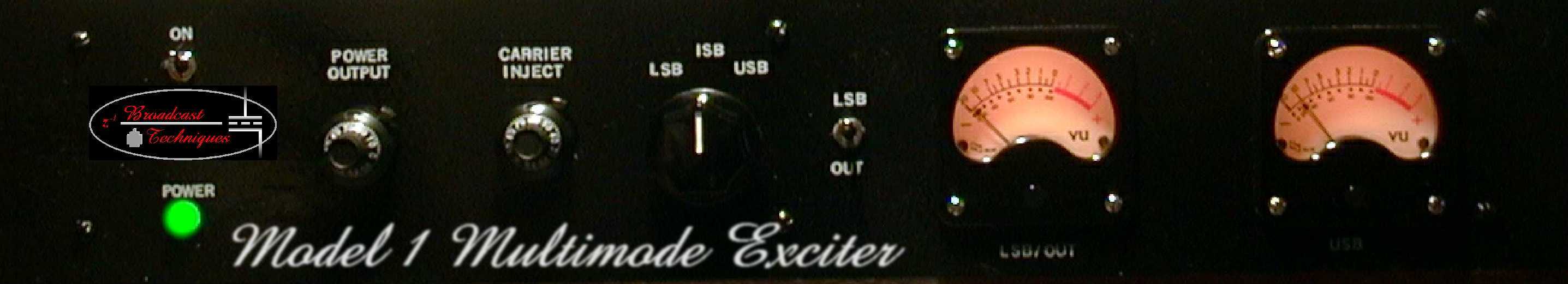

The Broadcast Techniques Model 1 is a DSP driven multimode AM exciter for use as a low power broadcast quality exciter. This system is capable of driving your high power amplifier in ISBFC, ISBSC, DSBFC, DSBSC, SSBFC, and SSBSC with Hi-Fidelity quality in monaural or AM Stereo modes. Units can be customized to individual specification. Direct Digital Synthesis (DDS) is used in units supplied with internal frequency generation requirements which permits the versatility of direct output at the transmitting or I.F. frequency. DDS models are capable of tuning from 50 KHz through 30 MHz.

Specifications:

Input Sensitivity
            Audio              Balanced 600 ohm 0 dBm
             I.F                 150 KHz - 500 KHz @ 7 v RMS Max

Output                       2 v p-p @ 75 ohms Source Impedance
                                   Continuously Adjustable

Stereo                         30 dB ISB
Channel
Seperation

SSB Opposite             > 55 dB single tone modulation
Sideband Suppression
Limit

Modulation                  15 Hz - 13 KHz  +/- 3 dB
Frequency
Response

Audio Distortion THD        < 0.5 %
                          IMD        < 1% @ below 100 Hz

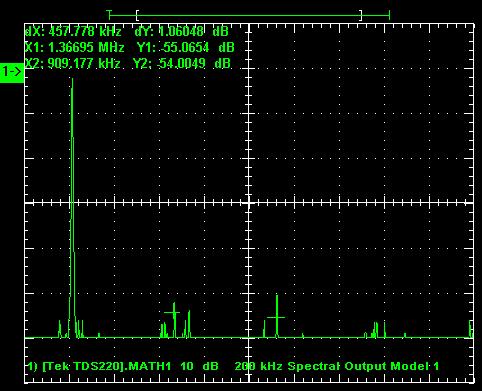

I.F. Harmonic Distortion:

Please contact us for further information and price quotes at info@broadcast-techniques.com
